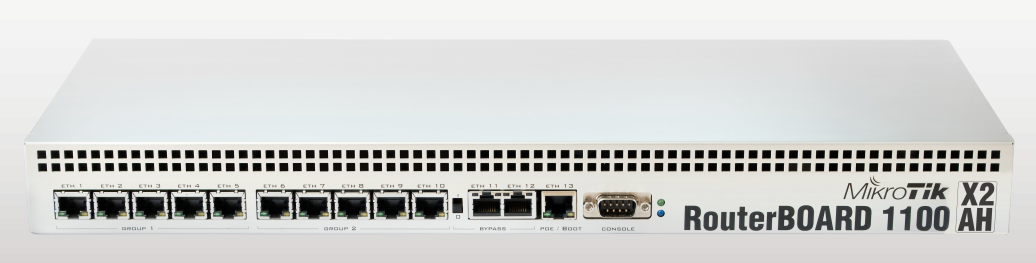

RB1100AH X2
| Details |
|---|
| Product code | RB1100AHx2 | | CPU speed | 1066MHz | | RAM | 2GB | | Architecture | PPC | | LAN ports | 13 | | Gigabit | Yes | | MiniPCI | 0 | | Memory Cards | 1 | | Memory card type | microSD | | Power Jack | 110/220V | | 802.3af support | No | | PoE | 12-24V | | Voltage Monitor | Yes | | PCB temperature monitor | Yes | | CPU temperature monitor | Yes | | Dimensions | 1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g | | Operating System | RouterOS | | Temperature range | -30C to +60C | | RouterOS License | Level6 | | Current Monitor | Yes | | CPU | P2020 |
Performance test results| RB1100AHx2 | | RouterOS v6.0rc4 | | | Mode | Configuration | 64 byte | 512 byte | 1518 byte | | kpps | Mbps | kpps | Mbps | kpps | Mbps | | Bridging | fast path | 1690 | 1108.6 | 704 | 2985.0 | 406 | 4988.9 | | Bridging | 25 Bridge filter rules | 412 | 270.3 | 396 | 1679.0 | 308 | 3784.7 | | Routing | fast path | 1495 | 980.7 | 704 | 2985.0 | 345 | 4239.4 | | Routing | 25 Simple Queues | 654 | 429.0 | 616 | 2611.8 | 258 | 3170.3 | | Routing | 25 Firewall filter rules | 278 | 182.4 | 262 | 1110.9 | 243 | 2986.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
|
