Mikrotik RB2011UAS-RM
The RB2011 is a low cost multi port device series. Designed
for indoor use, and available in many different cases, with a multitude
of options.
The RB2011 is powered by RouterOS, a fully featured routing operating
system which has been continuously improved for fifteen years. Dynamic
routing, hotspot, firewall, MPLS, VPN, advanced quality of service,
load balancing and bonding, real-time configuration and monitoring -
just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UAS-RM, in comparison with RB2011L series, not only
has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also
has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB).
Also, it has RouterOS L5 license (instead of L4) and nice touchscreen
LCD for configuration. SFP cage is also present (SFP module not included!)
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D,
S-31DLC20D and S-35/53LC20D (not included)

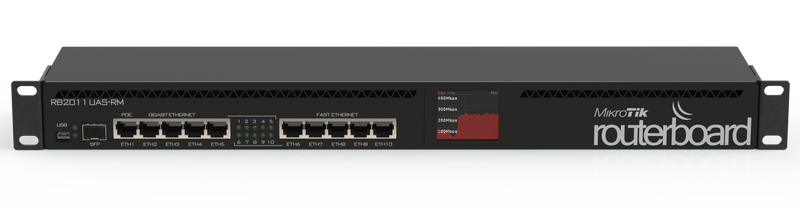

RouterBOARD 2011UAS-RM comes with 1U rackmount enclosure, LCD panel
and power supply.
| Details |
|---|
| Product code | RB2011UAS-RM | | CPU speed | 600MHz | | RAM | 128MB | | LAN ports | 5 | | Gigabit | 5 | | MiniPCI | 0 | | Integrated Wireless | no | | USB | microUSB | | Power Jack | 8-28V DC | | 802.3af support | No | | PoE | 8-28V DC on Ether1 | | Voltage Monitor | yes | | CPU temperature monitor | No | | PCB temperature monitor | yes | | Dimensions | 214mm x 86mm for PCB | | Operating System | RouterOS | | Temperature range | -35C to +65C | | RouterOS License | L5 | | Current Monitor | No | | CPU | Atheros AR9344 | | SFP ports | 1 |
Performance test results| RB2011UAS-RM | Fast+Gigabit Ethernet test (600Mhz) | RouterOS v6.0rc5 | | | Mode | Configuration | 64 byte | 512 byte | 1518 byte | | kpps | Mbps | kpps | Mbps | kpps | Mbps | | Bridging | fast path | 269.6 | 176.9 | 232 | 983.7 | 122 | 1499.1 | | Bridging | 25 Bridge filter rules | 87.6 | 57.5 | 86 | 364.6 | 83.6 | 1027.3 | | Routing | fast path | 226.9 | 148.8 | 210 | 890.4 | 122 | 1499.1 | | Routing | 25 Simple Queues) | 106.6 | 69.9 | 103.9 | 440.5 | 100.5 | 1234.9 | | Routing | 25 Firewall filter rules | 60.5 | 39.7 | 59.6 | 252.7 | 56.8 | 698.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
|
