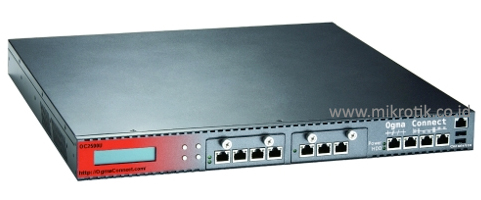

OgmaConnect OC2511U
Ogma
Connect has introduced an extreme performance network security / utility
platform, the OgmaConnect OC2511U, which is a 1U rack-mountable form
factor with 11 Gigabit Ethernet ports, through PCIe / PCI interface
and up to 4 sets of configurable LAN bypass segments for additional
flexibility in terms of redundancy.
CPU : Multi Core x86-64 64 Bit, Intel Core2Quad
Processor
Memory : 2 x 800MHz DDR2 Slots, 2 x1024MB 800MHz RAM (2Gb RAM)
installed on the base Model
Boot loader : Phoenix BIOS
Data storage : 4x SATA, 3x 2.5" Internal HDD Bays, 1x CF
Slots with True IDE IBM MicroDrive Support, 2x Internal USB 2.0 Header
Ethernet : 11 x 10/100/1000 Mbit/s Intel Pro 1000 Gigabit Ethernet
ports supporting Auto-MDI/X through Multiple PCI-E Lanes
PCI Slots : 1x Mini PCI, 1x PCI 32 Bit, 1x PCI 64 Bit 133MHz
Serial port : 1x RJ45 asynchronous serial port (external), 1x
asynchronous serial port (internal)
LEDs / LCDs : 1x back lit 2character x16 character LCD Display,
Power and HDD LED
Speaker : Mini PC - Speaker
Power : IEC C13 Power Cord, input power: 100VAC-250VAC 50Hz-
60Hz (International PSU)
Fan : 2x Redundant CPU/Power Supply /Chassis Fans,
Dimensions : 43.1cm x 42.98 cm x 4.4 cm
Temperature : Operational: 0°C to 40°C
Humidity : Operational: up to 95% relative humidity (non-condensing)
Power Supply : 270W ATX PSU
Operating System : MikroTik Router OS
|
