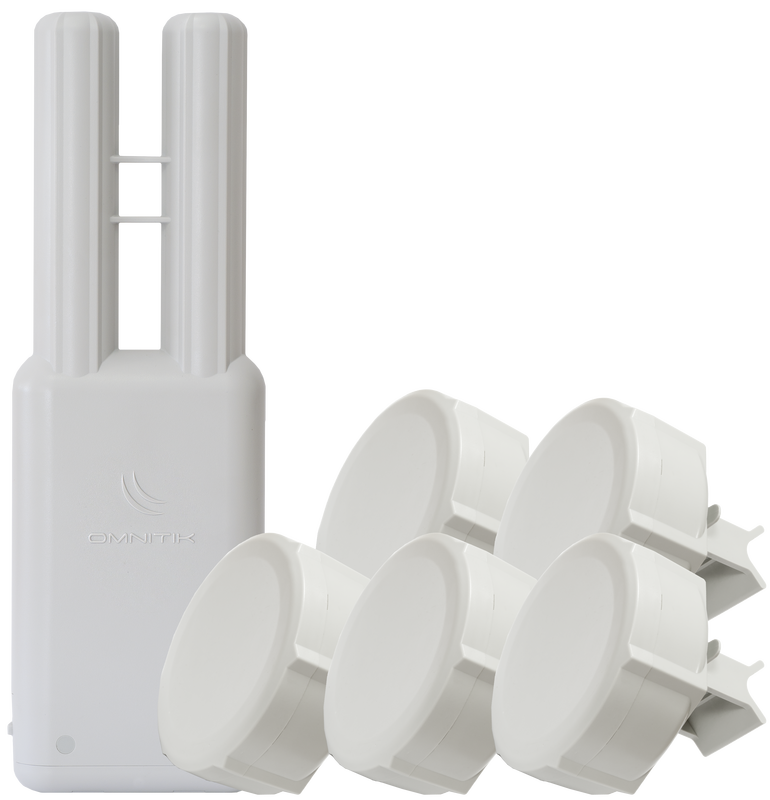

Mikrotik SXT Sixpack
 OmniTIKU-5HnD
is a weatherproof outdoor AP with dual-polarized omni antennas - the
perfect companion for the SXT, or for any other 5GHz 802.11a/n standard
device. Weatherproof, durable and ready to use. It has five 10/100 Ethernet
ports, PoE support and a built-in 400mW 802.11a/n wireless radio. Full
RouterOS feature set to control all networking in your tower.
SXT-5HPnD is a low cost, high speed 5GHz wireless device. It has a
dual chain antenna and supports 802.11n and Nv2 TDMA technology to achieve
200Mbit throughput speed! Complete with a ready to mount enclosure and
built-in antenna, this is the perfect CPE!
We are now offering the OmniTIKU-5HnD bundled with FIVE SXT-5HPnD client
devices -for the price of five SXT-5HPnD units, you get a complete kit.
| Details |
|---|
| Product code | RBSXTKit | | LAN ports | 5 | | Gigabit | No | | MiniPCI | 0 | | USB | 1 | | PoE | 10-28V | | Operating System | RouterOS | | Temperature range | -30C to +70C | | CPU | AR7100 |
Performance test results| RBSXTKit | One Fast Ethernet port test (400Mhz) | RouterOS v6.0rc6 | | | Mode | Configuration | 64 byte | 512 byte | 1518 byte | | kpps | Mbps | kpps | Mbps | kpps | Mbps | | Bridging | fast path | 148.0 | 97.1 | 23.5 | 99.6 | 8.1 | 99.8 | | Bridging | 25 Bridge filter rules | 53.7 | 35.2 | 23.5 | 99.6 | 8.1 | 99.8 | | Routing | fast path | 148.0 | 97.1 | 23.5 | 99.6 | 8.1 | 99.8 | | Routing | 25 Simple Queues | 92.8 | 60.8 | 23.5 | 99.6 | 8.1 | 99.8 | | Routing | 25 Firewall filter rules | 37.5 | 24.6 | 23.5 | 99.6 | 8.1 | 99.8 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
|
