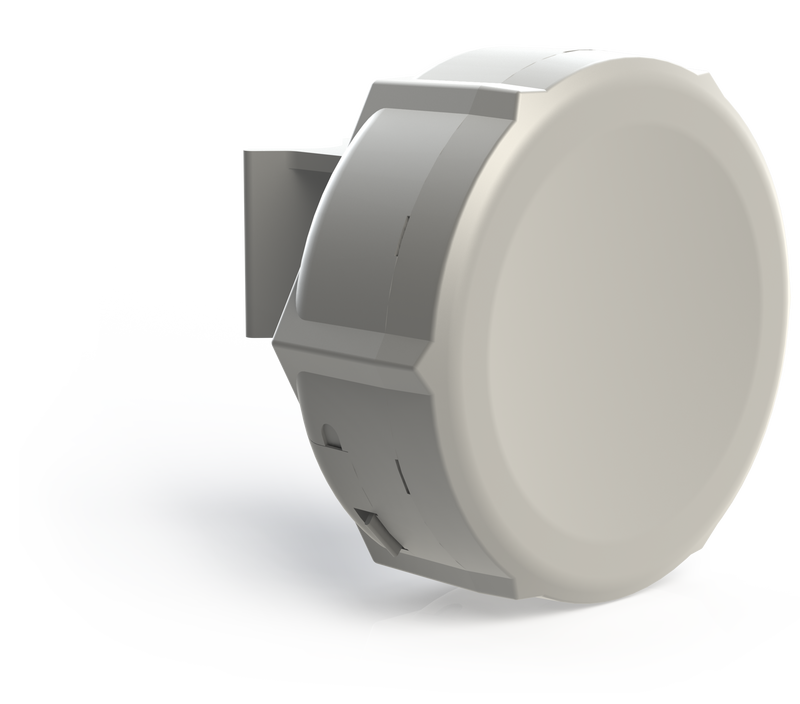

Mikrotik SXT G-2HnD
 We
are glad to introduce our first complete AP/CPE for 2.4Ghz - SXTG2HnD!
It's powerful 60 degrees 2x2 MIMO 10dbi sector antenna with 1600mW wireless
on-board- you can use it as a Sector AP, to make wireless point-to-point
links or as a CPE- whatever you prefer! It comes with L4 license, perfect
for covering outdoor area for hotspot clients.
Unit is equipped with Gigabit Ethernet port, so customers can take
full advantage of dual chain MIMO. It has the same form factor as our
popular 5Ghz SXT model.
Package contains SXTG-2HnD, mounting loops, PoE injector, power adapter
| Details |
|---|
| Product code | RBSXTG2HnD | | CPU speed | 400MHz | | RAM | 32MB | | Architecture | MIPS-BE | | LAN ports | 1 | | Gigabit | Yes | | MiniPCI | 0 | | Integrated Wireless | Yes | | Wireless standards | 802.11b/g/n | | USB | 1 | | PoE | 8-30V DC | | Voltage Monitor | Yes | | CPU temperature monitor | No | | PCB temperature monitor | Yes | | Dimensions | 140x140x56mm | | Operating System | RouterOS | | Temperature range | -30C to +80C | | RouterOS License | L4 | | Antenna gain | 10dBi | | Current Monitor | No | | TX power | 32dBm | | CPU | AR7242 | | Max Power consumption | Up to 7W |
Performance test results| RBSXTG2HnD | Gigabit Ethernet test (400Mhz) | RouterOS v6.0rc6 | | | Mode | Configuration | 64 byte | 512 byte | 1518 byte | | kpps | Mbps | kpps | Mbps | kpps | Mbps | | Bridging | fast path | 194.0 | 127.3 | 178.4 | 756.6 | 81.2 | 997.8 | | Bridging | 25 Bridge filter rules | 53.7 | 35.2 | 52.3 | 221.9 | 51.5 | 633.0 | | Routing | fast path | 183.7 | 120.5 | 167.0 | 708.1 | 81.2 | 997.8 | | Routing | 25 Simple Queues) | 92.8 | 60.8 | 88.5 | 375.1 | 81.2 | 997.8 | | Routing | 25 Firewall filter rules | 37.5 | 24.6 | 38.4 | 162.6 | 37.6 | 462.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
|
