Mikrotik RB2011L-RM
The RB2011 is a low cost multi port device series. Designed
for indoor use, and available in many different cases, with a multitude
of options.
The RB2011 is powered by RouterOS, a fully featured routing operating
system which has been continuously improved for fifteen years. Dynamic
routing, hotspot, firewall, MPLS, VPN, advanced quality of service,
load balancing and bonding, real-time configuration and monitoring -
just a few of the vast number of features supported by RouterOS.
The RB2011L-RM is our famous "$99 rackmount". It's powered
by the new Atheros 600MHz 74K MIPS network processor, has 64MB of RAM
and a Level4 RouterOS license, as well as five Gigabit Ethernet ports
and five Fast Ethernet ports for unbeliveable USD 99!

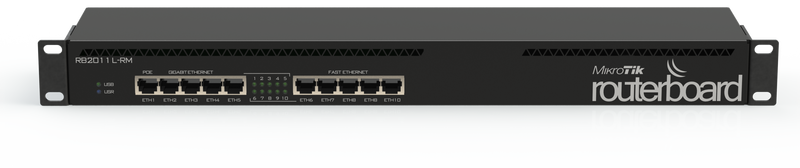

RouterBOARD 2011L-RM comes with 1U rackmount enclosure and power supply.
| Details |
|---|
| Product code | RB2011L-RM | | CPU speed | 600MHz | | Architecture | MIPS-BE | | RAM | 64MB | | LAN ports | 5 | | Gigabit | 5 | | MiniPCI | 0 | | Integrated Wireless | No | | PoE | 8-30V | | Voltage Monitor | No | | CPU temperature monitor | No | | PCB temperature monitor | No | | Temperature range | -35C to +65C | | RouterOS License | L4 | | Current Monitor | No | | CPU | Atheros AR9344 | | Max Power consumption | 6W |
Performance test results| RB2011L-RM | Fast+Gigabit Ethernet test (600Mhz) | RouterOS v6.0rc5 | | | Mode | Configuration | 64 byte | 512 byte | 1518 byte | | kpps | Mbps | kpps | Mbps | kpps | Mbps | | Bridging | fast path | 269.6 | 176.9 | 232 | 983.7 | 122 | 1499.1 | | Bridging | 25 Bridge filter rules | 87.6 | 57.5 | 86 | 364.6 | 83.6 | 1027.3 | | Routing | fast path | 226.9 | 148.8 | 210 | 890.4 | 122 | 1499.1 | | Routing | 25 Simple Queues) | 106.6 | 69.9 | 103.9 | 440.5 | 100.5 | 1234.9 | | Routing | 25 Firewall filter rules | 60.5 | 39.7 | 59.6 | 252.7 | 56.8 | 698.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
|
