RB751U-2HnD
 The

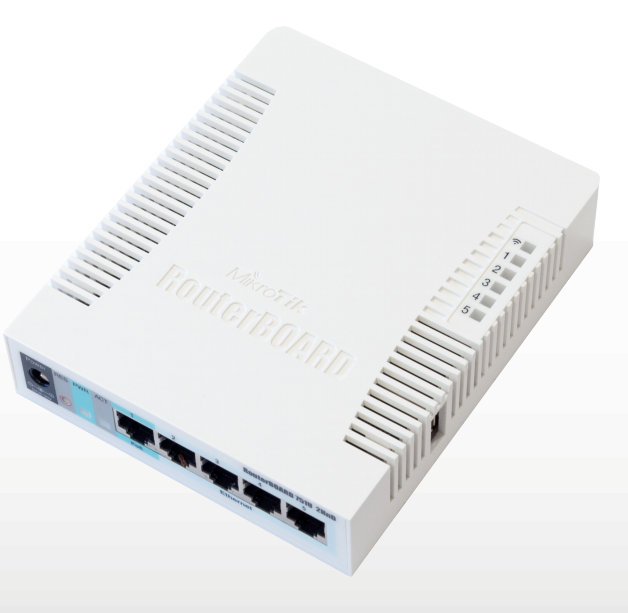

RB751U-2HnD is the wireless SOHO AP you have been waiting for!
It has five Ethernet ports, one USB 2.0 port and a high power 2.4Ghz
1000mW 802.11b/g/n wireless AP with antennas built in. It’s also possible
to connect an external MMCX antenna to replace one of the built in antennas.
The device is very small and will look good in any home or office,
wall mounting anchor holes are provided.
Package contains RB751U-2HnD in a plastic case and power adapter.
| Details |
|---|
| Product code | RB751U-2HnD | | CPU speed | 400MHz | | RAM | 32MB | | LAN ports | 5 | | Gigabit | No | | MiniPCI | 0 | | Integrated Wireless | 1 | | Wireless standards | 802.11b/g/n | | USB | 1 | | Power Jack | 8-30V DC | | 802.3af support | No | | PoE | 8-30V DC on Ether1 | | Voltage Monitor | No | | CPU temperature monitor | No | | PCB temperature monitor | No | | Dimensions | 113x138x29mm | | Operating System | RouterOS | | Temperature range | -20C .. +50C | | RouterOS License | L4 | | Antenna gain | 2x2 MIMO PIF antennas, max gain 2.5dBi; external MMCX option | | Current Monitor | No | | TX power | 30dBm | | CPU | Atheros AR7241 | | Max Power consumption | 10W |
Performance test results| RB751U-2HnD | Five Fast Ethernet port test (400Mhz) | RouterOS v6.0rc6 | | | Mode | Configuration | 64 byte | 512 byte | 1518 byte | | kpps | Mbps | kpps | Mbps | kpps | Mbps | | Bridging | fast path | 194.0 | 127.3 | 117.0 | 496.1 | 40.3 | 495.2 | | Bridging | 25 Bridge filter rules | 53.7 | 35.2 | 52.3 | 221.9 | 40.3 | 495.2 | | Routing | fast path | 183.7 | 120.5 | 117.0 | 496.1 | 40.3 | 495.2 | | Routing | 25 Simple Queues | 92.8 | 60.8 | 88.5 | 375.1 | 40.3 | 495.2 | | Routing | 25 Firewall filter rules | 37.5 | 24.6 | 38.4 | 162.6 | 37.6 | 462.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
|
